The Moulded Case Circuit Breaker (MCCB) [https://www.jiuces.com/moulded-case-circuit-breaker/] is a cornerstone of modern electrical safety, ensuring that electrical circuits are automatically protected from dangerous conditions such as overloads, short circuits, and ground faults. Encased in durable molded plastic, MCCBs are designed to operate reliably even in challenging environments where insulation and protection from dust, moisture, and other hazards are critical. Their compact design, coupled with a high interrupting capacity, makes them highly versatile and indispensable across a range of applications, from industrial machinery to commercial power distribution, and even residential electrical systems.

This article explores the key features, mechanisms, and applications of MCCBs [https://www.jiuces.com/moulded-case-circuit-breaker/], highlighting their critical role in electrical safety and reliability.

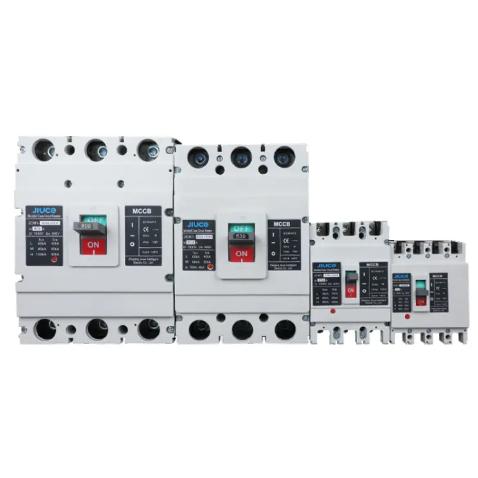

Image: https://www.jiuces.com/uploads/150.png

What is a Moulded Case Circuit Breaker?

The Moulded Case Circuit Breaker (MCCB) is a type of electrical protection device that interrupts the flow of current during abnormal operating conditions. Encased in a protective molded plastic shell, MCCBs are robustly constructed to safeguard internal components from environmental factors such as dust and moisture while also providing electrical insulation.

MCCBs are designed to:

* Interrupt electric current in the event of an overload, short circuit, or ground fault.
* Manually operate to isolate circuits for maintenance or safety purposes.
* Handle large currents, making them ideal for industrial and commercial systems.

Their high interrupting capacity allows them to safely interrupt high fault currents, minimizing the risk of damage to electrical equipment and preventing fires. MCCBs come in various sizes and ratings, providing the flexibility to be used in a wide range of electrical systems.

The Operation Mechanism of MCCBs

MCCBs use two primary mechanisms to detect and respond to abnormal current conditions: thermal protection and magnetic protection. These mechanisms ensure that the MCCB can effectively respond to different types of faults, whether they occur gradually (overload) or instantaneously (short circuit).

1. Thermal Trip Mechanism

The thermal element in an MCCB is a bimetallic strip that responds to the heat generated by excessive current over a sustained period. As the current flowing through the breaker increases beyond the rated value, the strip heats up and bends. Once the strip bends to a certain point, it triggers the trip mechanism, cutting off the power supply.

This thermal response is specifically designed to protect against overload conditions, where the current exceeds the rated value but does not instantly cause damage. The thermal trip mechanism allows for a delayed response, ensuring that momentary surges in current (such as during the start-up of motors) do not cause unnecessary interruptions. If the overload persists, however, the MCCB will trip and prevent overheating of wires or connected equipment.

2. Magnetic Trip Mechanism

The magnetic element of an MCCB provides instantaneous protection against short circuits. During a short circuit, an enormous surge of current flows through the breaker. This surge generates a magnetic field strong enough to trip the breaker almost immediately, interrupting the current before it can cause significant damage.

The magnetic trip mechanism is essential for protecting against short circuits, which occur when there is an unintended direct path for electricity, bypassing the load. Short circuits are dangerous because they can cause severe damage to equipment and present fire hazards. The rapid response of the MCCB's magnetic trip mechanism prevents the current from reaching dangerous levels, effectively safeguarding the electrical system.

3. Adjustable Trip Settings

Many MCCBs are equipped with adjustable trip settings, allowing users to customize the breaker's performance to meet the specific requirements of their system. This adjustability provides greater flexibility in terms of both thermal and magnetic trip thresholds.

For example, in applications where motors are used, the starting current might be significantly higher than the normal operating current. By adjusting the thermal trip settings, operators can prevent unnecessary tripping while still ensuring that the system is protected during prolonged overloads. Similarly, adjusting the magnetic trip settings allows the breaker to respond optimally to short circuits of varying intensities.

4. Manual and Automatic Operation

MCCBs are designed for both manual and automatic operation. In normal conditions, the breaker can be manually operated to switch circuits on or off, making it easy to perform maintenance or safely test electrical systems.

In the event of an electrical fault, the MCCB will automatically trip, cutting off power to protect the system. This combination of manual and automatic operation enhances operational flexibility, allowing for scheduled maintenance and unscheduled fault protection.

5. Wide Range of Current Ratings

MCCBs are available in a wide range of current ratings, from as low as 10 amperes (A) to as high as 2,500 A or more. This variety makes them suitable for applications across various industries and environments, from residential buildings to large industrial complexes.

The ability to choose an MCCB with the appropriate current rating ensures that the breaker provides reliable protection without unnecessarily tripping during normal operation. Furthermore, MCCBs can be rated for different voltages, including low voltage (LV) and medium voltage (MV) systems, further enhancing their versatility.

Applications of MCCBs

Due to their adaptability and high performance, MCCBs are utilized across a wide range of industries and environments. The most common applications include:

1. Industrial Systems

In industrial settings, MCCBs are critical for protecting heavy machinery, transformers, and large-scale electrical systems from faults that could result in equipment damage, downtime, or fires. MCCBs with high current ratings and high interrupting capacities are particularly important in industries such as manufacturing, mining, oil and gas, and energy generation, where electrical systems experience high loads and potential fault currents.

2. Commercial Buildings

In commercial buildings such as shopping malls, office complexes, and hospitals, MCCBs play a vital role in ensuring the safe and reliable distribution of electrical power. These breakers protect HVAC systems, lighting, elevators, and other essential building systems from overloads and short circuits, helping to maintain continuous operation and minimize risks to occupants.

3. Residential Use

Although residential electrical systems typically use smaller-scale protective devices like miniature circuit breakers (MCBs), MCCBs are sometimes used in larger residential applications or where higher fault protection is needed, such as in apartment buildings or homes with large electrical loads (e.g., electric vehicle charging stations). MCCBs provide the added assurance of protection from more severe electrical faults in these cases.

4. Renewable Energy Systems

As renewable energy systems like solar and wind power installations become more common, MCCBs are being increasingly used to protect the inverters, transformers, and distribution networks within these systems. The ability to adjust trip settings allows MCCBs to accommodate the varying electrical loads and conditions typical of renewable energy sources.

5. Utility and Infrastructure

MCCBs are also deployed in utility-scale electrical systems, including power distribution networks, substations, and critical infrastructure such as transportation systems and data centers. Here, they ensure the continuous operation of essential services by protecting against electrical faults that could lead to widespread outages or damage.

Advantages of Moulded Case Circuit Breakers

MCCBs offer numerous advantages that make them a preferred choice for electrical protection in various applications:

1. Versatility

MCCBs are highly versatile due to their wide range of current and voltage ratings, adjustable trip settings, and ability to handle both low and high fault currents. This versatility makes them suitable for use in diverse environments, from residential buildings to large industrial plants.

2. High Reliability

The robust construction and reliable trip mechanisms of MCCBs ensure that they provide consistent protection over time. Their high interrupting capacity means that even in the event of severe faults, MCCBs will safely disconnect the circuit without failure.

3. Safety

By preventing overloads, short circuits, and ground faults, MCCBs play a critical role in protecting both electrical equipment and personnel from hazardous conditions. The molded case provides insulation and environmental protection, while the automatic trip mechanism ensures that faults are addressed immediately.

4. Easy Maintenance

MCCBs can be easily operated manually for maintenance purposes, allowing circuits to be safely isolated without requiring a complete shutdown of the system. This makes it convenient to carry out inspections, repairs, or upgrades without disrupting other parts of the electrical network.

5. Space-Saving Design

The compact design of MCCBs allows them to be used in tight spaces, such as electrical panels and switchboards, without sacrificing performance. Their ability to handle large currents in a small form factor is particularly valuable in applications where space is limited.

Conclusion

The Moulded Case Circuit Breaker [https://www.jiuces.com/moulded-case-circuit-breaker/] (MCCB) is an essential component in electrical distribution systems, offering a versatile, reliable, and efficient solution for protecting circuits from overloads, short circuits, and ground faults. With its robust molded casing, high interrupting capacity, and adjustable trip settings, the MCCB is ideal for a wide range of applications across industrial, commercial, residential, and renewable energy sectors.

Whether used to protect heavy industrial equipment, maintain safe operations in commercial buildings, or ensure the continuous flow of renewable energy, MCCBs provide the safety and reliability necessary for modern electrical systems. Their combination of thermal and magnetic trip mechanisms ensures that faults are quickly detected and addressed, minimizing risks to equipment and personnel alike.

In summary, the MCCB not only safeguards electrical installations but also ensures the continuous and safe operation of power distribution networks, making it a vital tool in the modern world of electrical engineering.
