RCD Circuit Breaker: A Vital Safety Device for Electrical Systems

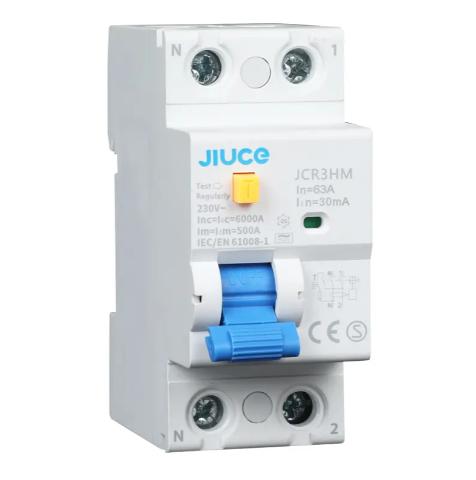

The Residual Current Device (RCD), [https://www.jiuces.com/rcd/] also commonly known as a Residual Current Circuit Breaker (RCCB), is important for electrical systems. It prevents electric shock and reduces the risks of electrical fires. This device is a highly sensitive component that monitors the flow of electrical current in a circuit and rapidly disconnects the power supply when there's a fault, such as when current leaks to the ground (earth).

Image: https://www.jiuces.com/uploads/154.png

Introduction to RCD Circuit Breakers [https://www.jiuces.com/rcd/]

An RCD circuit breaker is designed to monitor the balance of current flowing via a live or neutral conductor in electrical circuits. Under normal operating conditions, the current flowing through the live conductor should be equal to the current flowing through the neutral conductor. However, when afault is encountered, such as a damaged appliance or faulty wiring, current can leak to the ground, creating a residual current. The RCD detects this imbalance and trips the circuit, cutting off the electricity supply in milliseconds.

This fast responses help to prevent potentially electric shocks as well as reduce risk of fire by faulty electrical equipment. The use of RCDs is particularly important in environments with increased risk, such as wet areas (e.g., bathrooms, kitchens, and outdoor locations) and construction sites.

How RCD Circuit Breakers Work

The operation of an RCD residual current device is on principle of detecting imbalances between the live (phase) and neutral currents. In a perfectly functioning electrical system, the current entering via live conductors should return through neutral conductors. If an RCD detects even a small leakage current to the earth (typically 30 milliamps or less), it will trip the circuit.

Here is how the RCD circuit breaker functions:

* Normal Operation: In normal conditions, live and neutral currents are balanced, and the RCD does not take any action, allowing electrical systems to function as expected.
* Detection of Leakage Current: When there is an earth fault or insulation failure in an appliance or wiring, current leaks from the live conductor to the earth, creating imbalances between live and neutral currents.
* Trigger Mechanism: The RCD circuit breakers continuously monitor current flow. If it detects a leakage current (residual current) that exceeds predetermined thresholds (usually 30mA), the device triggers the trip mechanism.
* Rapid Disconnection: Within milliseconds of detecting the fault, the RCD disconnects the power supply to the affected circuit, preventing potential electric shock or electrical fire.

Image: https://www.jiuces.com/uploads/229.png

Types of RCD Circuit Breakers

There are several types of RCD circuit breakers, each suited to specific applications and levels of protection:

1. Fixed RCDs

Fixed RCDs are permanently installed in electrical distribution boards and provide protection to multiple circuits within a building. They are ideal for protecting entire installations or specific zones in homes, offices, and industrial sites.

2. Portable RCDs

Portable RCDs are plug-in devices used with individual appliances, providing added protection when working with portable electrical equipment. These devices are particularly useful for temporary protection in construction sites, workshops, and outdoor areas.

3. Socket-Outlet RCDs

Socket-outlet RCDs are integrated into electrical sockets and provide protection to appliances plugged into those outlets. These RCDs commonly used in areas of higher risk of electric shock, such as bathrooms, kitchens, and outdoor installations.

Key Features and Benefits of RCD Circuit Breakers

RCD residual current devices are widely recognized for their essential safety features, including:

1. Protection Against Electric Shock

The primary function of an RCD is preventing electric shock. By detecting and disconnecting circuits that have ground faults, the RCD can prevent serious injuries or fatalities caused by electrical shock.

2. Fire Prevention

Electrical faults, particularly ground faults, are a common cause of electrical fires. RCD circuit breakers reduce the risk of fire by quickly cutting off the power fault is detected.

3. Fast Response Time

RCDs respond within milliseconds of detecting an imbalance in the electrical current, minimizing risk of injury or damage to property.

4. Enhanced Safety in Wet Environments

RCDs are highly recommended for use in areas where water is present, such as bathrooms, kitchens, and outdoor locations. Water increases risk of electrical accidents, and the RCD provides an additional layer of protection in these environments.

5. Compliance with Safety Standards

Many building regulations and electrical safety standards require the use of RCD residual current devices in new installations and renovations. Their use ensures compliance with safety regulations and enhances the overall protection of electrical systems.

Applications of RCD Circuit Breakers

RCD circuit breakers are used in a wide range of applications to improve safety and reduce risks associated with electrical faults. Some common applications include:

1. Residential Buildings

In homes, RCD circuit breakers provide essential protection against electrical faults that could lead to electric shock or fire. They are especially important in areas with water exposure, such as bathrooms and kitchens, where risks of shock is higher.

2. Commercial and Industrial Installations

In commercial and the industrial settings, RCDs protect workers from electrical hazards, particularly in environments with a high risk of electrical accidents, such as construction sites, workshops, and factories. They are also used to protect sensitive equipment from damage due to electrical faults.

3. Outdoor and Temporary Installations

Portable RCDs are commonly used in temporary installations, such as on construction sites, outdoor events, or during electrical maintenance work. These devices provide critical protection when working with temporary or portable equipment.

Limitations of RCD Circuit Breakers

While RCD residual current devices are effective at preventing electric shocks and fires, they do have some limitations:

* They Do Not Provide Overload or Short Circuit Protection: An RCD is designed to detect ground faults and residual currents, but it does not protect against overloads or short circuits. For complete protection, an RCD should be used in conjunction with other circuit breakers or fuses that offer overload and short circuit protection.
* Nuisance Tripping: In some cases, RCD circuit breakers may trip unnecessarily due to minor current leaks or transient faults. However, the benefits of safety far outweigh the inconvenience of occasional nuisance tripping.
* No Protection Against Line-to-Neutral Faults: RCDs only protect against earth faults, not faults that occur between live and neutral conductors. Additional protective devices are needed for comprehensive circuit protection.

How to Test RCD Circuit Breakers

Regular testing of RCD residual current devices is important to ensure their functionality. Most RCDs come with a test button that simulates a fault by creating a small current imbalance. When the test button is pressed, the RCD circuit breaker should trip immediately, indicating that it is functioning properly. It is recommended to test RCDs at least once every six months to ensure their reliability.

Image: https://www.jiuces.com/uploads/314.png

Conclusion

The (RCD) [https://www.jiuces.com/rcd/], also known as (RCCB), is a vital safety device that provides protection against electric shock and electrical fires. By monitoring electrical circuits for ground faults and quickly disconnecting the power supply in event of a fault, RCD circuit breakers play an essential role in enhancing the safety of electrical installations. Their use is particularly important in areas with increased risk, such as wet environments and construction sites, where risk of electrical accidents is higher. For anyone seeking the safety of their electrical systems, installing RCDs is a critical step in minimizing hazards and protecting both people and property.
