2-Layer PCB vs 4-Layer PCB: A Comprehensive Comparison of Advantages and Disadvantages

Printed Circuit Boards [https://www.allwinpcba.com/onlineorder.html] (PCBs) are the backbone of modern electronics, enabling the connectivity of various electronic components in an organized and efficient manner. When it comes to designing PCBs, one of the fundamental decisions to make is choosing between a 2-layer PCB and a 4-layer PCB. The number of layers in a PCB has a profound impact on its functionality, performance, and cost. In this comprehensive essay, we will delve into the advantages and disadvantages of 2-layer and 4-layer PCBs, exploring their differences, use cases, and key considerations to help engineers and designers make informed decisions.

Introduction to PCB Layers

Before we delve into the comparison, it's essential to understand what constitutes a 2-layer PCB and a 4-layer PCB.

2-Layer PCB: As the name suggests, a 2-layer PCB consists of two layers of conductive material separated by an insulating substrate. These layers are typically referred to as the top and bottom layers. Components and traces are placed on both sides of the board, and the interconnection between them is achieved by drilling holes (vias) through the board and using copper traces on the surface to establish electrical connections.

4-Layer PCB: A 4-layer PCB, as the name implies, incorporates four layers of conductive material, with insulating layers sandwiched between them. In addition to the top and bottom layers for component placement, it has two inner layers. These inner layers are often used for ground and power planes or signal routing, providing a more robust foundation for complex designs.

Now, let's explore the detailed advantages and disadvantages of these two types of PCBs.

Advantages and Disadvantages of 2-Layer PCBsAdvantages:

1. Cost-Effectiveness: One of the primary advantages of 2-layer PCBs is their cost-effectiveness. They are more affordable to manufacture and assemble compared to their 4-layer counterparts. This makes them an attractive option for projects with budget constraints.

2. Simplicity in Design: 2-layer PCBs are relatively straightforward to design and fabricate. The absence of internal layers simplifies the manufacturing process and reduces the chances of errors during production. This makes them a preferred choice for simple or low-complexity applications.

3. Versatility: Despite their simplicity, 2-layer PCBs are versatile and suitable for a wide range of applications. They can serve well in projects with fewer components and less complex circuitry.

Disadvantages:

1. Limited Routing Options: Perhaps the most significant limitation of 2-layer PCBs is their restricted routing options. With only two layers available for trace routing, it can be challenging to design boards for circuits with high component density or complex interconnections. This limitation can lead to longer and more convoluted traces, potentially affecting signal integrity.

2. Signal Integrity Issues: 2-layer PCBs are more prone to signal integrity problems. The lack of dedicated ground and power planes can result in issues such as crosstalk, electromagnetic interference (EMI), and radio-frequency interference (RFI). Maintaining signal integrity in high-frequency applications can be particularly challenging with 2-layer designs.

Advantages and Disadvantages of 4-Layer PCBsAdvantages:

1. Improved Signal Integrity: One of the most significant advantages of 4-layer PCBs is their ability to provide improved signal integrity. The inclusion of additional internal layers allows for the creation of dedicated ground and power planes, reducing interference and offering controlled impedance routing. This is particularly important in high-frequency and sensitive applications.

2. Higher Component Density: 4-layer PCBs excel in accommodating a larger number of components with higher component density. The additional layers provide ample space for intricate routing, making them ideal for projects with complex and densely packed circuitry.

3. EMI/RFI Shielding: The extra layers in 4-layer PCBs provide inherent shielding properties. This is invaluable in applications where electromagnetic interference (EMI) and radio-frequency interference (RFI) need to be minimized or controlled, such as in medical devices or communication systems.

Disadvantages:

1. Increased Cost: A notable drawback of 4-layer PCBs is their higher manufacturing and assembly costs. The complexity introduced by the additional layers, materials, and processes translates into a higher price tag. This can be a deterrent for projects with tight budgets.

2. Complex Design and Assembly: Designing and assembling 4-layer PCBs is more intricate and requires specialized skills and tools. Designers need to manage power and ground planes effectively and ensure signal integrity, which demands a deeper understanding of PCB layout and routing.

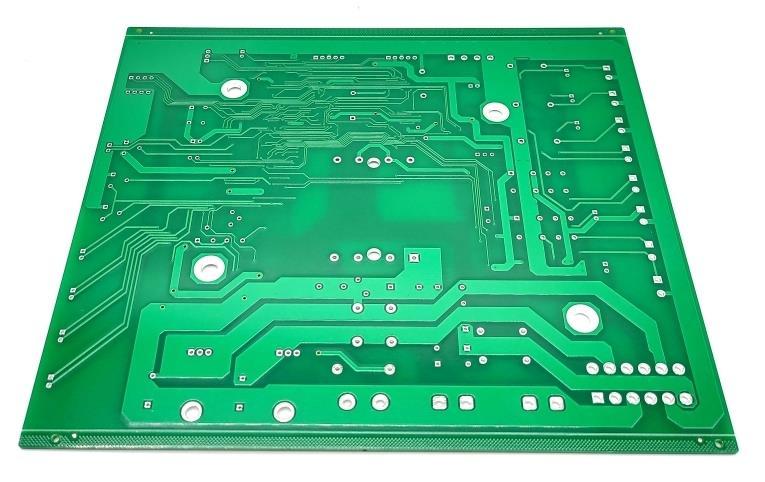

Image: https://www.allwinpcba.com/upload/202310/24/202310242350405083.png

Selecting the Right PCB for Your Project

The choice between a 2-layer PCB and a 4-layer PCB is not a one-size-fits-all decision. It depends on the specific requirements and constraints of your project. To make an informed choice, consider the following factors:

1. Complexity of the Circuit: Assess the complexity of your circuit design. If your project involves a large number of components and intricate interconnections, a 4-layer PCB is likely the better choice.

2. Signal Integrity Requirements: Consider the required signal integrity for your application. High-frequency or sensitive circuits will benefit from the enhanced signal integrity offered by 4-layer PCBs.

3. Budget Constraints: Evaluate your project's budget. If cost is a primary concern and your design is relatively simple, a 2-layer PCB might be the more economical choice.

4. Expertise and Resources: Assess the expertise and resources available to you. Designing and assembling 4-layer PCBs require more advanced skills and tools, so ensure your team or partners are capable of handling the complexity.

5. Space Constraints: If your project has limited space for the PCB, the compact design of a 2-layer PCB may be more suitable.

6. EMI/RFI Sensitivity: Consider the electromagnetic compatibility requirements of your project. If you need to minimize EMI and RFI, a 4-layer PCB is the better choice.

Use Cases

Let's explore some common use cases for both 2-layer and 4-layer PCBs to better understand where each type excels.

Use Cases for 2-Layer PCBs:

*
1. Simple Consumer Electronics: 2-layer PCBs are commonly used in simple consumer electronic devices like remote controls, basic digital clocks, and some low-cost household appliances.

*
2. Prototyping and Hobbyist Projects: For individuals or small teams working on prototypes or hobbyist projects, 2-layer PCBs are cost-effective and suitable for less complex designs.

*
3. Low-Volume Production: In situations where production volume is limited, 2-layer PCBs can keep costs in check while delivering acceptable performance.

Use Cases for 4-Layer PCBs:

*
1. High-Performance Computing: In applications where signal integrity, speed, and data transmission are critical, such as in high-performance computing servers and data centers, 4-layer PCBs are often preferred.

*
2. Telecommunications Equipment: Telecommunication devices, like routers and switches, require robust signal integrity and often employ 4-layer PCBs to meet these requirements.

*
3. Medical Devices: Medical devices, which demand precision and reliability, often utilize 4-layer PCBs to ensure consistent performance and EMI/RFI compliance.

*
4. High-Frequency RF Electronics: Radio-frequency (RF) devices and equipment operating at high frequencies, such as mobile phones and wireless communication systems, benefit from the enhanced signal integrity and EMI control provided by 4-layer PCBs.

Conclusion

In the realm of electronics and PCB design, the choice between a 2-layer PCB and a 4-layer PCB is pivotal. Each option offers distinct advantages and disadvantages, making it essential to make an informed decision based on your project's specific requirements, budget constraints, and available resources.

A 2-layer PCB is a cost-effective and versatile choice for projects with simplicity and budget in mind. It's suitable for simple consumer electronics, prototyping, and low-volume production. However, it may struggle with complex circuitry and high-frequency applications, where signal integrity and interference control are paramount.

On the other hand, a 4-layer PCB offers superior signal integrity, enhanced EMI/RFI shielding, and the ability to accommodate high component density. It is the go-to choice for applications demanding high performance, such as telecommunications equipment, medical devices, and high-frequency RF electronics. However, it comes at a higher cost and requires a more significant level of expertise in design and assembly.

Ultimately, the success of your project hinges on selecting the right PCB type that aligns with your project's specific needs. A thorough evaluation of the advantages and disadvantages of 2-layer and 4-layer PCBs, alongside careful consideration of your project's requirements, will guide you toward making the optimal choice and ensuring the success of your electronic endeavor.
