Infrared Heat Forms Plastic Tubes Quickly and In A Targeted Fashion

Plastic tubes and pipes are increasingly being used in civil engineering as well as in domestic technology. Infrared emitters from Heraeus Noblelight help to stress relieve hoses, bend tubes and pipes or form sleeves. They transfer energy in a contact-free manner and generate heat primarily in the material. As a result, heating takes place uniformly and rapidly. This saves energy and space and the heating process can be easily automated.
Heraeus Noblelight is showing infrared heaters for plastics at Fakuma in Friedrichshafen from 14 to 18 October on Stand 1121 in Hall B1 at Fakuma.
Tubes and pipes are used for wastewater, drainage, drinking water and gas or electric cable protection. Plastics such as Polyethylene (PE), polyvinylchloride (PVC) or polypropylene (PP) are increasingly replacing conventional materials such as concrete, stoneware and copper.
Before they are used, plastic tubes are bent into shape, provided with grooves for sealing rings or they have sleeves so that they can be inserted into each other. Conventionally hot air, heating sleeves or hot liquid baths have been used to soften the plastic before forming it. Infrared emitters transfer energy in a contact-free manner and generate heat primarily in the material. As a result heating takes place uniformly and no material sticks to the heat source. The targeted and controllable heat prevents thermal damage or messy pressure points.
Infrared emitters heat targeted areas of a tube or pipe, as the heated length of the emitter can be matched to the bending radius. In contrast to hot air oven, the edge areas remain relatively cool, which permits the component to be simply held, facilitating process automation. Infrared emitters can be precisely matched to the material and process and this saves energy. Because of the high heat transfer capacity of infrared radiation, heating times can also be reduced, which means production is faster or valuable production space is saved. Trials in our in-house Applications Centre have shown that a few minutes infrared radiation are sufficient to warm through PVC tubes with a wall thickness of more than 20 mm.

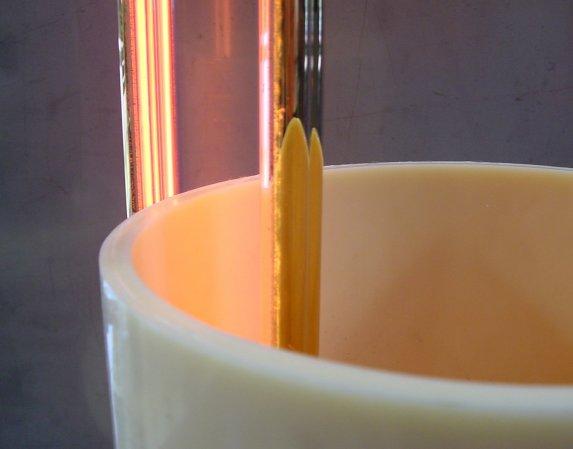

Conventionally, the sleeving of tubes takes place with the aid of heating jackets, which transfer heat into the plastic through close contact. Shortwave Omega emitters are circular and can heat small sections in a targeted manner. Omega emitters or small flat emitters arranged in a circle heat the tube ends without contact to make the plastic there soft, so that a sleeve socket can be formed.
Shortwave infrared emitters have response times in terms of seconds so that they can be easily controlled. They transfer heat rapidly at high efficiency. Infrared emitters need be switched on only when energy is needed and this is another energy-saving feature.
As well as shortwave emitters, Heraeus Noblelight also offers Carbon infrared emitters with a spectrum which is particularly well matched to the absorption characteristics of plastics. Carbon infrared emitters combine highly effective medium wave radiation with the short response times of shortwave emitters.
Common to all Heraeus emitters is the way they can be matched to the relevant process in terms of shape, size and spectrum. As a result, complex heating stages can be reproduced and automation can be introduced.
Heraeus Noblelight offers the complete spectrum of infrared heat from very shortwave NIR to medium wave Carbon Infrared (CIR). Heraeus has more than 40 years experience in infrared emitters and carries out practical tests with customers’ own materials in its own in-house Application Centres, to determine optimum process solutions.
