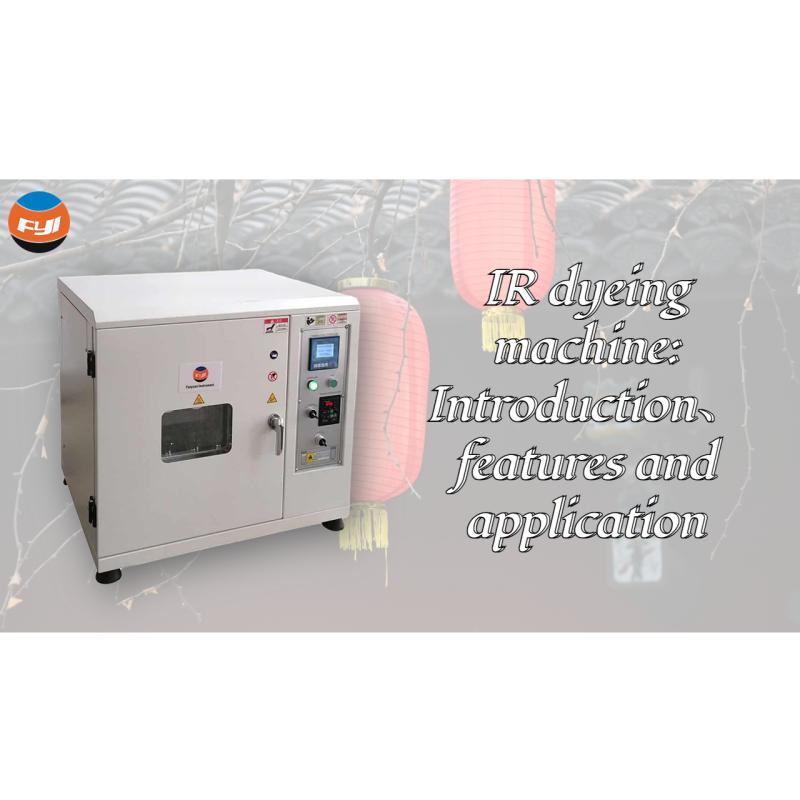

IR Dyeing Machine for Sale

CHINA, HEFEI (October 08, 2022)-IR dyeing machine(https://fyitester.com/for-sale/ir-dyeing-machine-rhs-24/) is shorted for infrared dyeing machine or infra colour dyeing machine. It is a new high-temperature sample dyeing machine integrating the advantages of traditional glycerin proofing machine and ordinary infrared proofing machine.
As a high temperature dyeing machine, it is suitable for dyeing and washing fastness tests of high temperature samples such as dyed knitted fabrics, woven fabrics, yarns, cotton, loose fibers, zippers, shoe mesh fabrics, etc. The high-temperature IR dyeing machine is specially designed for dyeing industry, chemical industry, raw material and cloth industry. It can accurately simulate the actual production conditions and achieve the required process effect.

Features

Control part
1. The PLC controller controls the temperature and LCD display, and displays the temperature and the current process in real time, which is convenient for the testers to grasp the test dynamics.
2. The frequency converter is used to freely control the rotation direction and speed of the dyeing device. The 360-degree rotation of the beaker inside the machine makes the sample fully soaked in the dyeing liquid, and the color of the sample is more uniform.

Dyeing part
1. The beakers of the IR dyeing machine are made of stainless steel, which is durable and easy to clean. The lid of the beaker contains a sealing ring to prevent the leakage of dye solution during the experiment and cause safety problems.
2. The specifications of the beaker are usually 150ml and 300ml. Customers with special needs can contact us to customize beakers with specific specifications.
3. The internal operation of this infra colour dyeing machine for sample dyeing is similar to the actual mass production, which has a strong guiding significance for actual production.

Heating and cooling parts
1.The infrared lamp does not directly heat the dyeing cup, but heats the heat transfer oil, so that the power is small and there is no oil fume pollution.
2.This heating method replaces the traditional two-position infrared heating system, so the temperature difference between the cups is avoided, and the temperature control probe only needs to directly detect the temperature.
3.For energy consumption, compared with the traditional glycerin coloring machine, it can save more than 50% of electricity,
4.The traditional cooling method adopts water bath cooling, but this infrared dyeing machine adopts convection forced air cooling to cool down, which avoids the waste of water.

Additional features
1. The minimum liquor ratio can reach 1:5, saving water and dye costs.
2. It has long service life, longer than conventional infrared dyeing machines.
3. Equipped with high temperature protective gloves to prevent burns.
4. There is a monitoring window on the door, you can observe the real-time internal operation status.

Application
The infra colour dyeing machine has the characteristics of safety, high efficiency, environmental protection, energy saving and consumption reduction. And it can be applied to various tests, such as:
1.Dyeing and color matching experiments;
2.Subsection heating sampling test;
3.Segmentation, leveling, penetration test;
4.The dye absorption rate test by the difference of pH, temperature and liquor ratio;
5.Concentration and other tests, etc.
